IMPACT MM
Multi Media

IP-BROADCAST NETWORK

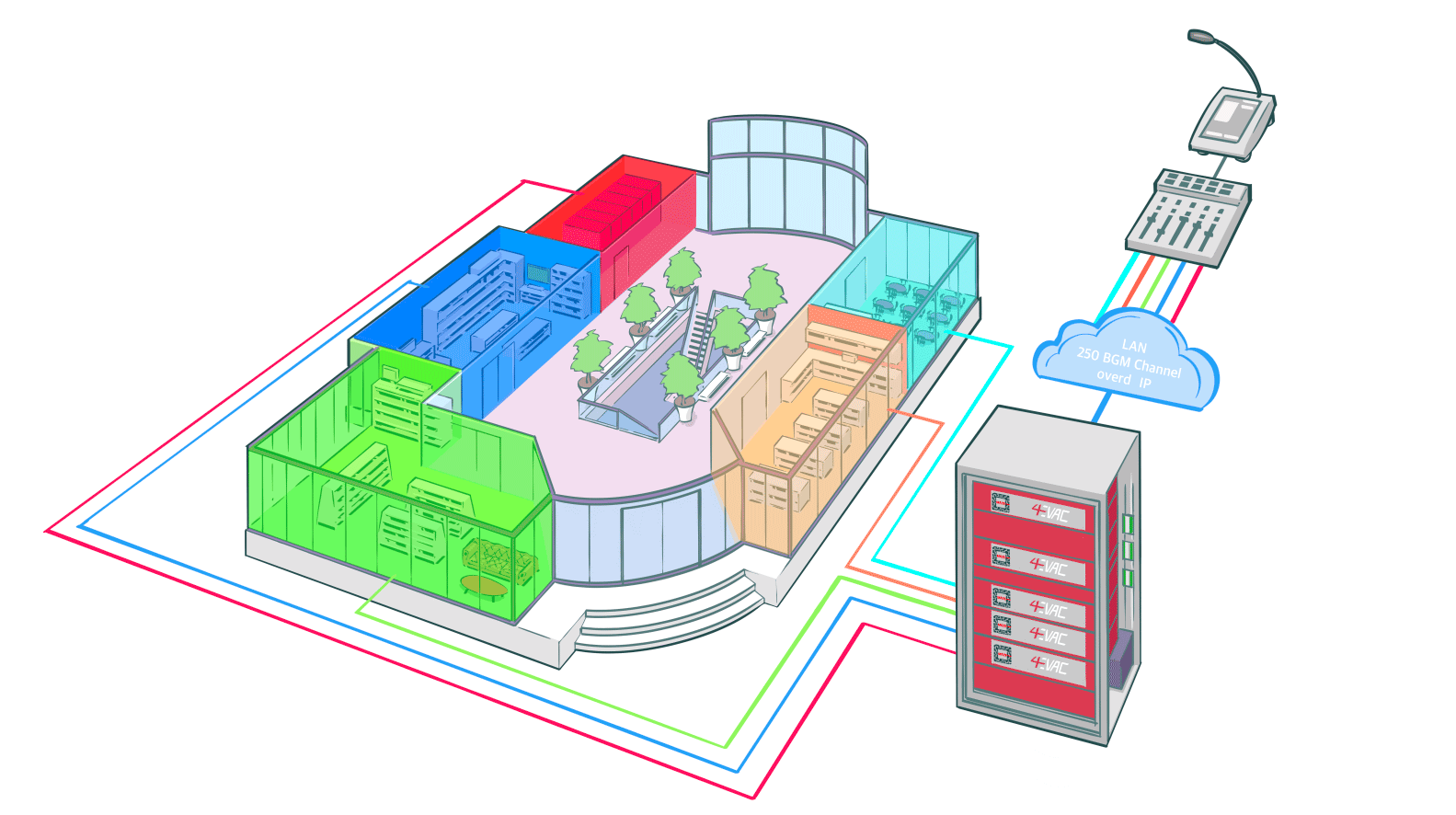

Impact Multi-Media (Impact-MM) system features 4EVAC’s proprietary MAZE protocol: audio-over-IP transport platform. Impact-MM, equipped with MAZE network cards, enables Ethernet ports, through which the Voice Alarm system has access to 250 high quality, low latency audio channels over IP. Multiple sites with individual Voice Alarm installations can transmit and receive simultaneous background music programs via LAN. Built-in 100Mbps switch allows for point-to-point connections, without use of 3rd party switches or routers. The MAZE IP broadcast network is an additional BGM facility for most demanding modern audio distribution demands.

MAZE is a retro-fit network engine for the Controller and provides full network capabilities on-top of the mandatory Voice-Alarm functions of the Controller.



i-Controller has similar functional options like impact Controller with L-net and G-net Interfaces, GPO, Evacin. Unlike Impact the i-Controllers in combination with i-DCA2.500 uses 4E-AM448 a DIN-rail mounted surveillance box with 4 amplifier inputs and one backup amplifier input which is routed to 4 A/B loudspeaker outputs.

i-Controller is the brain of the maze engine modules which is equipped with enabled Ethernet ports and MAZE engine installed. i-Controller has therefore direct access to 250 audio channels transmitted within the MAZE network.

i-Controller can either transmit 2 BGM channels over IP to the MAZE Network or it can send the standard analog BGM inputs to the global network. Standard analog BGM inputs can be used as priority BGM channel over other channels. Signal from local analog BGM inputs that is broadcasted by i-Controller to the LAN, can be received by other MAZE modules like the i-DCA and the i-Matrix. Each of the i-Controller is configurable by the MAZE manager where static IP can be assigned as well as to create a maze setting for Evac manager which helps to simplify the configuration by providing an optimal solution for the users. Impact-MM can grow up to 32 high-power speaker lines with A/B surveillance, shared back-up and line surveillance high and low impedance loudspeakers.

i-CONTROLLER
Networked Audio Matrix and Voice Alarm Controller

Impact i-Controller, the brain and network hub of Impact MM Voice Alarm System. Thanks to enabled Ethernet ports and MAZE engine installed, the i-Controller has direct access to 250 audio channels transmitted within the MAZE network. i-Controller can receive simultaneously 2 BGM channels over IP, while the standard analog BGM inputs are still available. Signal from local analog BGM inputs can be also simultaneously broadcasted by i-Controller to the LAN, to be received by amplifiers and other i-Controller.


TECHNICAL BASIC SPECIFICATIONS



  • Controls: EVAC and ALERT. RESET, SILENCE, LAMPTEST

  • Local Audio Network: 3x L-Net for remote control devices.

  • Global Audio Network: 2x G-Net for ring connectivity to up to 255 units.

  • 16-EVAC input

  • 8-GPO

  • Mandatory relay’s: FAULT/RESET/SILENCE

  • 2x aux entry

  • Amp-link

  • TCP-IP / AMP-link connectivity

  • Compatible with all L-NET devices / modules.

  • Dimensions: 44x483x340mm (HxWxD)

  • Weight: 2kg

  • IP-rating: IP30

  • RAL3011

  • EN54-16


TECHNICAL MAZE SPECIFICATIONS



  • MAZE Multi-Media engine with 2 port switch

  • Frequency range for streams: 20 - 22kHz

  • 250 audio channels

  • 32 audio channels over AMP-LINK (16x i-DCA2500)

i-DCA2.500
2x500 WATT D-Class Charger Amplifier - direct drive

Impact-MM amplifier, the i-DCA2.500, is the networked MAZE variant of the i-DCA2.500. Like i-Controller, the i-DCA2.500 has dual-port Ethernet interface with built-in 100Mbps switch and MAZE engine, which opens access to 250 audio BGM channels available in the MAZE network. Each i-DCA2.500 can also broadcast two digital audio streams to the MAZE network from it’s local BGM analog inputs. Thanks to dual-port switch onboard, multiple i-DCA2.500 units can be daisy-chained with i-Controller inside the rack, without extra switches or routers. i-DCA2.500 can be used as a standalone amplifier for low priority PA sub-systems, sharing the same network with Voice Alarm rack.

TECHNICAL BASIC SPECIFICATIONS



  • 2ch amplifier

  • Aux input for local source

  • AMP-LINK for audio and data charing with CONTROLLER (RJ45)

  • Max. load: 2x500W @ 100V / 70V(-3dB) / 50V(-6dB) / LOW-Z max. 5A

  • Frequency respond: 20 - 35kHz @ 500W/ch

  • Battry charger: 4Amp

  • Battery range: 30 - 100Ah • Remote contacts for: GF/LAMPTEST/ 2xNC

  • Temperaturesensor included

  • AMP-LINK patchcable included

  • Dimensions: 88x483x340mm (HxWxD)

  • Weight: 8kg  IP-rating: IP30

  • RAL3011

  • EN54-16 & EN54-4


TECHNICAL MAZE SPECIFICATIONS



  • MAZE Multi-Media engine with 2-port switch

  • Frequency range for streams: 20 - 22kHz

  • 250 audio channels

  • 32 audio channels over AMP-LINK (16x i-DCA2500)

4E-AM448
i-CONTROLLER and i-DCA2.500 rack

4E-AM448 is a DIN-rail mounted surveillance box with 4 amplifier inputs and 4 A/B loudspeaker outputs, dedicated for i-Controller and i-DCA2.500. 4E-AM448 is also the backup amplifier manager, and therefore features additional backup amplifier input, which is shared by all 4 primary amplifier inputs. Each amplifier channel is split internally into 2 loudspeaker circuits: A and B.


Each of 8 loudspeaker output circuits is monitored individually.

TECHNICAL SPECIFICATIONS



  • DIN-RAIL

  • 4 amplifier channel into 4 (A/B) speakerline surveillance module

  • Directly connected to a single channel output line of an amplifier.

  • High and low impedant loudspeaker detection. (With EOL)

  • Max. of 3x 4E-AM488 sharing 1x L-Net connection for communication and power purpose. (Without additional 24VDC) The 4E-AM488 can be remotely powered incase more than 3x 4E-AM488 units need to be linked to a single L-Net line.


  • Each switched output zone requires an EOL-device for line-integrity detection • RS485 datalink with

  • Max. load: 500W per channel

  • Redundant L-Net link, 2xRJ45

  • Addressable: 0-255

i-MATRIX

With the MAZE network users have the ability to stream multiple digital audio channels over IP. With the help of i-Matrix users now have the flexibility to expand the MAZE audio streams, total of 6 IN X 10 OUT audio channels. The i-Matrix is a cost effective solution when the users needs extra inputs to the MAZE network without the need of extra output power that an additional i-DCA2.500 would offer. Beside that, the MATRIX is also available without the MAZE engine and featurus powerful pre-and post audio processing such as, parametric EQ’s, noise-sensing mic input and powerful line delay of up to 30 seconds per output.

​

4 x 8 balanced audio matrix with DSP, with additional with 2in/2out streaming to and from Impact-MM system (total 6 IN x 10 OUT). Built-in message player with micro SD card storage, 4xGPIO, RS485, USB port, 100Mbps dual Ethernet port

TECHNICAL BASIC SPECIFICATIONS



  • DIN-RAIL

  • STAND-ALONE audio interface.

  • Audio bandwidth; 20 - 22kHz

  • 4x8 in/out balanced audio matrix.

  • 16s delay per output

  • 5 point parametric EQ each in/out

  • 4x GPIO

  • RS485 control

  • SD-card message player

  • RS485 datalink with

  • Web interface

  • IP-switch, 2xRJ45

  • Addressable: 0-255

  • EN54-16


TECHNICAL MAZE SPECIFICATIONS



  • MAZE Multi-Media engine with 2 port switch

  • 250 audio channels

  • Can be used in combination with i-CONTROLLER/i-DCA2500 or as STAND-ALONE audio interface.

  • EN54-16

i-CMT                                                       AUTUMN 2023

T touch-screen controller paging console i-CMT general purpose IP paging station, with MAZE engine and full access to all Impact-MM zones and sources. i-CMT with 2-port Ethernet switch (easy daisy-chaining) can be powered from local switch via PoE. Each i-CMT can broadcast two audio streams: one from the local gooseneck microphone and another from local AUX 3.5mm input jack.

TECHNICAL SPECIFICATIONS

​

  • Table-top version

  • Addressable: 0-255

  • 2x RJ45 for ring, spur or daisy-chain interfacing with C500

  • Configurable 7”” touchscreen for paging control and status information.

  • 30cm gooseneck with dynamic hyper-cardioid microphone

  • Addressable: 0-255.

  • Redundant L-Net link, 2xRJ45

  • 2x RJ45 for ring, spur or daisy-chain interfacing with C500
